TP-Link Archer C60 AC1350 Wireless Dual Band Router

Fast, Concurrent Dual Band Wi-Fi
The TP-Link Archer C60 AC1350 Wireless Dual Band Router provides you with simultaneous dual band Wi-Fi connections.
2.4GHz band: 3×3 MIMO creates fast and stable Wi-Fi at speeds of 450Mbps, making it perfect for daily applications like sending emails, browsing the web or listening to music.
5GHz band: Provides up to 867Mbps Wi-Fi for latency-sensitive entertainment so you can stream HD video, play online games and hold video chats all at the same time, without delay.

Arranged Coverage, Enhanced Stability
Archer C60’s innovative design includes five antennas, three at 2.4GHz and two at 5GHz. These have been arranged alternately to optimize the dual band 802.11ac Wi-Fi, creating a transmission with maximized coverage, minimized interference.

The New Wi-Fi Standard for an Advanced Online Experience
The TP-Link Archer C60 AC1350 Wireless Dual Band Router comes with the latest wireless standard – 802.11ac. This advanced Wi-Fi is designed for high-traffic online activities and can help to run applications at triple the speed of the previous 802.11n standard. The result: faster, stronger and more capable Wi-Fi to unleash all your wireless devices.

Easy Parental Control
Supervise children and staff with responsible access, controlled by parents or administrators. Use URL blocking to easily set up a black or white list and limit the level of web access.

Guest Network Access
Allow guests to join your Wi-Fi network, while protecting your privacy. Make sharing easy, maintain security.

Easy Setup and Management
Set up the Archer C60 in minutes thanks to its intuitive web interface. Configuration is also in the palm of your hands with TP-LINK’s powerful app, Tether, the easiest way to access and manage your router through your smartphone.

Technical Specifications

WIRELESS

Wireless Standards
IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz

Wireless Speeds
450Mbps(2.4GHz)
867Mbps(5GHz)

Frequency
2.4-2.5GHz
5.15-5.25GHz

Transmit Power
CE:
<=20dBm （2.4G）
<=23dBm （5G）

Wireless Modes
Wireless Router
WDS(Four Address)
WDS(AP+APC)

Wireless Security
WEP
WPA\WPA2
WPA-PSK\WPA2-PSK

SOFTWARE

Quality of Service: WMM, Bandwidth Control

WAN Type:
Dynamic IP/Static IP/PPPoE/
BigPond/ /L2TP(Dual Access) /PPTP(Dual Access)

Management
Access Control
Local Management
Remote Management

DHCP: Server, Client, DHCP Client List, Address Reservation

VPN Pass-Through
PPTP
L2TP
IPSec

Access Control
Parental Control
Local Management Control
Host List
Access Schedule
Rule Management

Protocols
IPv4
IPv6

Guest Network
2.4GHz guest network
5GHz guest network

HARDWARE

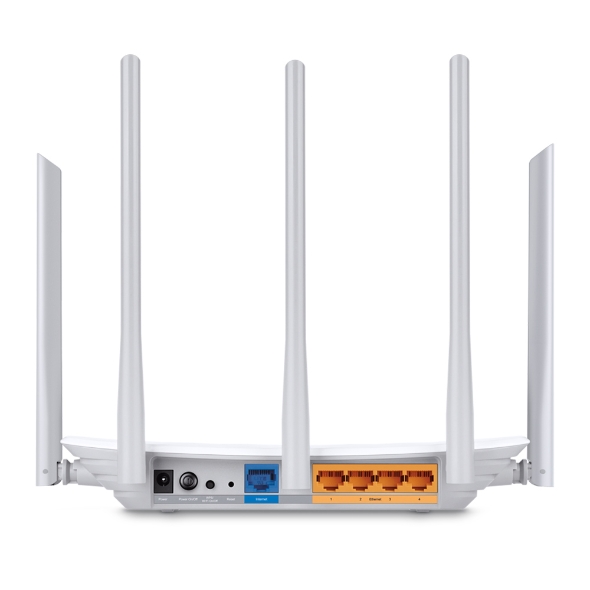

Interface
4 × 10/100Mbps LAN Ports
1 × 10/100Mbps WAN Port

Button
WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button

External Power Supply: 12VDC/1A

Antenna
3 × 2.4GHz Antennas
2 × 5GHz Antennas

OTHERS

Certification: CE, RoHS

Environment:
Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Operating System:
Microsoft Windows XP/Vista/7/8/8.1/10
MAC OS, NetWare, UNIX or Linux

Dimensions ( W x D x H ): 230 mm × 144 mm × 37 mm)
